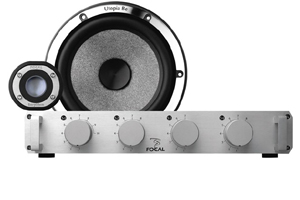

Focal

• 2-way component kit
• Diameter: 61/2" (165mm)
• Composite sandwich cone: "W"
• Voice-coil: 19/16" (40mm)
• Magnet: Neodymium
• Pure Beryllium inverted dome TBe tweeter
• Crossblock: 4480 filtering settings available, 2-way 12/12dB/oct
• Max. power: 200W
• Nom. power: 100W RMS
• Sensitivity (2.83V/1m): 91.5dB
• Frequency response: 66Hz-40kHz
• Accessories: supplied grilles
• Available in N°6 Active version
  (without Crossblock)

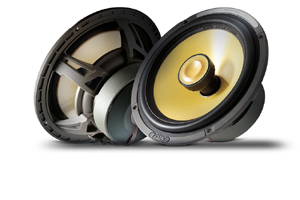

• 2 way coaxial kit
• Diameter: 61/2" (165mm)
• Voice coil diameter: 1" (25mm)
• Voice coil height: 09/16" (15mm)
• Motor: Magnet
• Tweeter: TKM ( "M" profil aramid fiber inverted dome)
• Cone: Composite K2 Power "W" sandwich cone
• Surround: Tuned Mass Damper (TMD®)
• Max. power: 160W
• Nom. power: 80W RMS
• Sensitivity (2.83V/1m): 93dB
• Frequency response: 60Hz-22kHz
• Impedance: 4Ω
• Accessories: supplied grilles

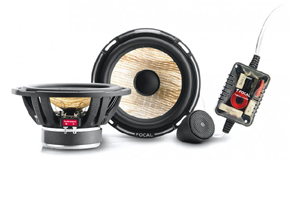

• 2-way component kit
• Diameter: 61/2" (165mm)
• Mounting depth: 27/8" (72.5mm)
• Voice-coil diameter: 1" (25mm)
• Voice-coil height: 09/6" (15mm)
• Magnet: 31/3" (85mm)
• Processed Aluminum/Magnesium inverted
• dome tweeter
• Cone: Flax
• Separated crossover: 12-12dB/Oct
• Ajustable tweeter level: 0; -3dB/Oct
• Max. power: 140W
• Nom. power: 70W RMS
• Sensitivity (2.83V/1m): 91.6dB
• Frequency response: 60Hz-28kHz
• Accessories: supplied grilles

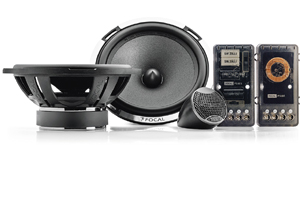

• 2-way component kit
• Diameter: 61/2" (165mm)
• Mounting depth: 29/16" (65.5mm)
• Voice-coil diameter: 1" (25mm)
• Voice-coil height: 07/16" (11.5mm)
• Magnet: 31/13" (85mm)
• Processed Aluminum inverted dome tweeter
• Cone: Polyglass
• Separated crossover: 0; -3; -6dB
• Max. power: 160W
• Nom. power: 80W RMS
• Sensitivity (2.83V/1m): 92.5dB
• Frequency response: 60Hz-20kHz
• Accessories: supplied grilles

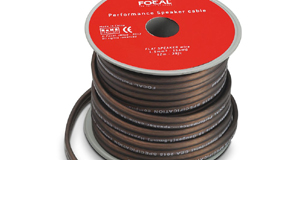

• Flat speaker cable.
• 13 AWG / 2.5mm2
• High performances, easy to install.
• Soft touch insulant.
• Roll: 39 Ftx13 AWG
  (12mx2.5mm2)
